Carewell Products

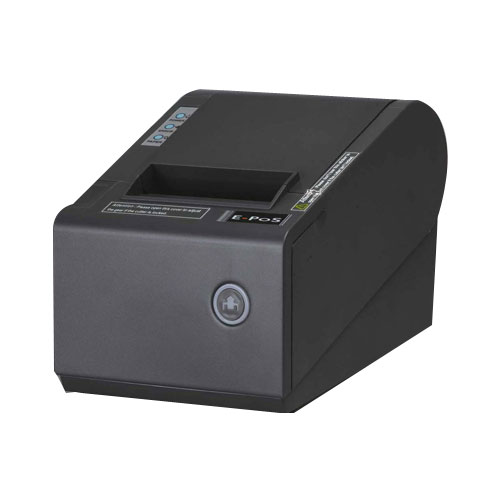

TEP 220 is a POS thermal receipt printer built by E-POS systems (Pvt) ltd with kitchen’s print support. The print method used is thermal line printing, and the cutter method is full or partial cut. It can print at a speed of 220mm/sec with a paper width of about 79.5 ±0.5 mm. The characters supported are ANK Character, Font A: 12*24 dots; Font B: 9*17 dots, Simplify / Traditional: 24*24dots. The print languages can be English, French, German, Denish, Spanish, Japanese, and Korean. The dimensions of TEP 220 are 145mm (width), 203mm (depth), and 135mm (height). Both the repeated operation and copy printing are provided. Parallel, RS232C, USB, and Wireless interfaces are supported. The reliable print life span is about 100km and it requires power supply of about DC 24V. The drivers supported by TEP 220 are Win9x, WinME, Win2000, WinNT, and WinXP, and the paper thickness can be 0.06 ~ 0.08 mm. It is designed to be compatible with EPSON, and SAMSUNG, and the print command used is compatible with ESC/POS. The characters can be scaled up to 64 times as large as standard size, and the built-in interface provides control capability for cash drawer. The command protocol used is based on ESC / POS standard, and offers various layouts by using page mode.

Advantage
