Carewell Products

Epos

8 " TFT Non Touch POS Monitor - DP801A
Specification
  • Panel:
    Viewing area       8.0 inches
    Resolution      800 x 600
    Active display area      111.3x84.7
    Color      26.2k
    Response time(TR/TF)       10/15 ms
    Contrast ratio      500:1
  • Video input:
    VGA signal      RGB Analog
    Horizontal frequency     31 to 48KHz
    Vertical frequency     56 to 72Hz
  • Power:
    Management      VESA DPMS
    Consumption      less than 5W
8-inch

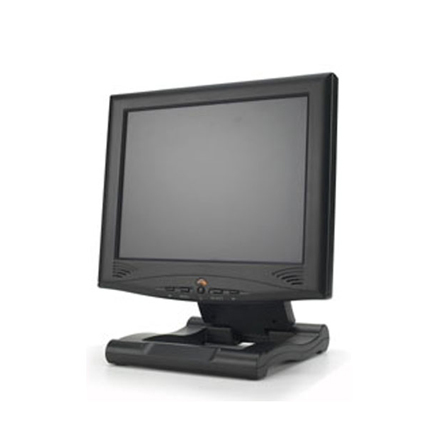

Non-Touch Monitors 10.4” LCD TFT Monitor

The cost-effective 10.4” LCD monitor is specially designed for commercial use such as POS monitor. Thanks to its compact design, it is suitable for where the space is constrained. It can be also equipped with 5-wire resistive touch screen for menu order or any other application.

10.4inchLCDTouchMonitor
Few Specifications
  • Glass Surface:Black Anti-Glare coating, low reflection coating
  • Video Signal: Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  • Synchronization:Composite Sync, Separate Sync, Sync on green
  • Frequency : Fh: 30 ~ 82Khz, Fv:60 ~ 75Hz
  • Resolution:800 x 600, 640 x 480, 720 x 400
  • Pixel Pitch: 0.264 (H) x 0.264 (V) mm
  • Recommendation: 800 x 600 @ 60 Hz
  • Power Rating :25 W/ Operation; 5 W/ Standby
  • Speaker :Stereo, 2W x 2 ( built-in speakers)
Non-Touch Monitors 12.1 LCD TFT Monitor

The cost-effective 12” LCD monitor is specially designed for commercial use such as POS monitor. Thanks to its compact design, its suitable for where the space is constrained. It can be also equipped with 5-wire resistive touch screen for menu order or any other application.

12.1
Few Specifications
  • Glass:Surface Black Anti-Glare coating, low reflection coating
  • Video Signal :Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  • Synchronization :Composite Sync, Separate Sync, Sync on green
  • Frequency :Fh: 30 ~ 82Khz, Fv:60 ~ 75Hz
  • Resolution:1024 x 768, 800 x 600, 640 x 480, 720 x 400
  • Pixel Pitch: 0.24 (H) x 0.24 (V) mm
  • Recommendation : 024 x 768 @ 60 Hz
  • Power Rating :25 W/ Operation; 5 W/ Standby
  • Speaker :Stereo, 2W x 2 ( built-in speakers)

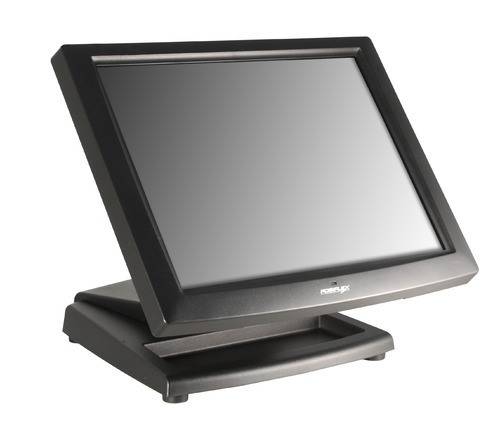

POS 135

POS 135 LCD Touch screen has spill and dust proof design in front bezel , meets IP54 requirement ideally for retail and hospitality environment .This is available in two colors white and black . With display size of 15” and weighs 4.67 kgs .Includes optional wall mount bracket , second display and VFD customer display.

epos-pos135
Few Specifications
  • Spill and Dust design in front bezel, meets IP54 requirements ideally for retail and hospitality environment.
  • Sturdy and robust base
  • Screen titling angle freely up to 90 degree vertically
  • Integrate Elo 5 wIres Resistive touch
  • Optional detachable MSR for stock flexibility
  • Optional choices of 2nd display for advertisement application
Specification
  • Cabinet Color : Black or White
  • Display Size: 15"
  • Active Area: 304.1*228 mm
  • Optimal Resolution: 1024*768
  • Brightness : 250 nits(typ)
  • Contrast Ratio: 600:1
